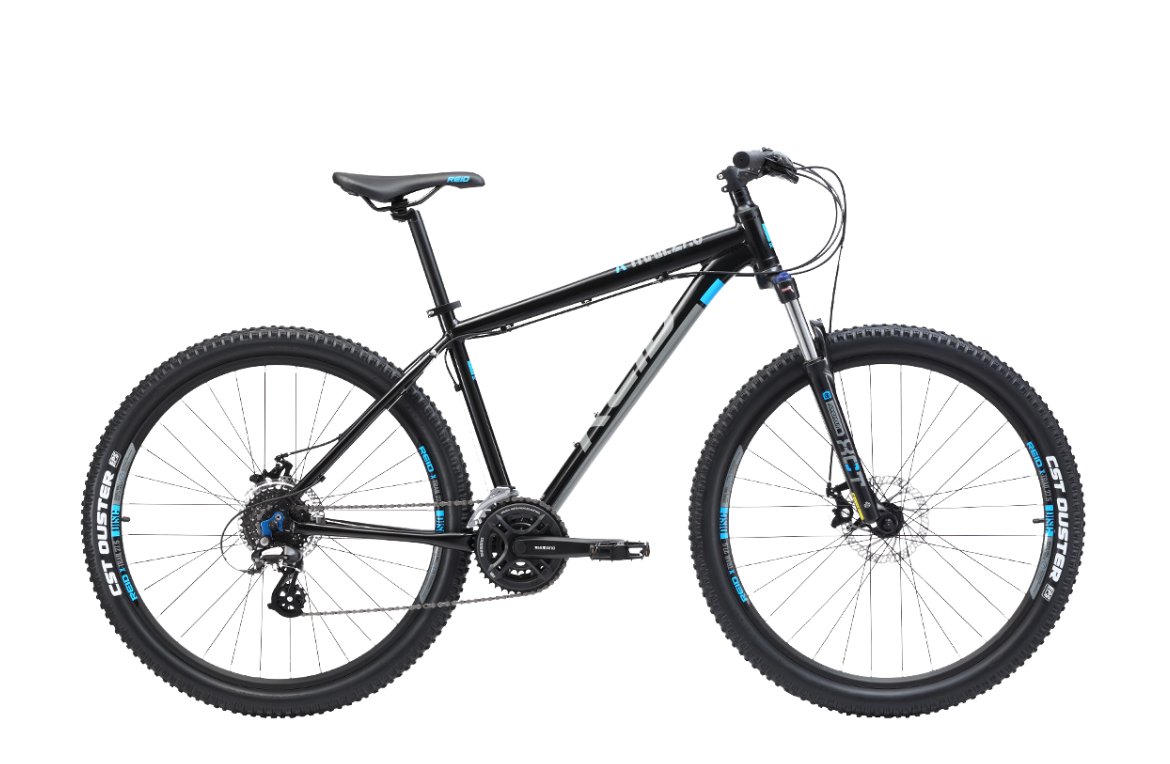

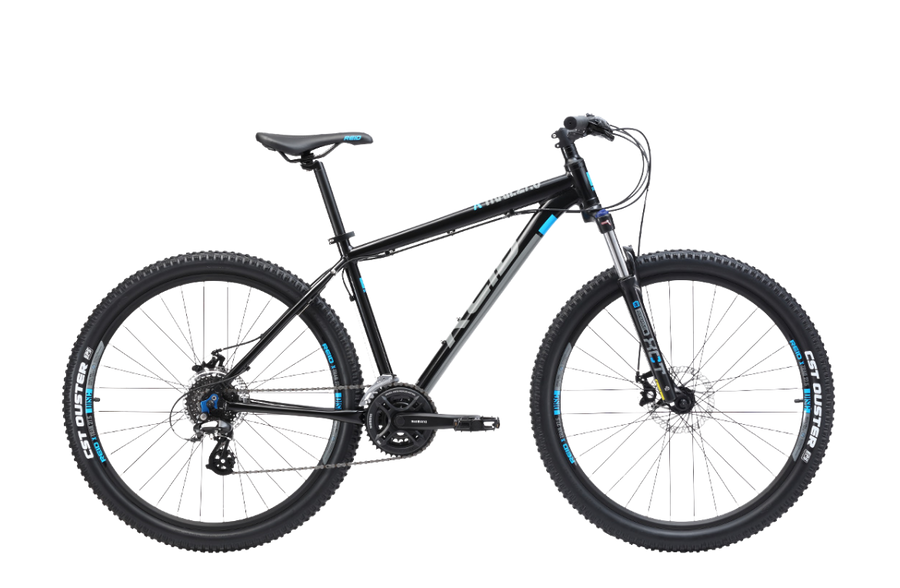

X-Trail Mountain Bike 2020 Black
TRAIL TIME
Variant:
Black / S - 39cm
Black / M - 43cm
Black / L - 48cm
Black / XL - 52cm
Price:
Contact your local retailer for RRP
Contact your local retailer for RRP
Contact your local retailer for RRP
Contact your local retailer for RRP
Barcode:
5060633055674
5060633055681
5060633055698
5060633055704
Description
Geometry
Our X-Trail is the perfect bike to try out the world of the 27.5″ Tyre. Featuring a 6061 T6 aluminium frame with trail inspired geometry, along with the larger diameter tyre, you’ll be filled with confidence out on the trail.
The Reid X-Trail 27.5 features a 6061 T6 aluminium frame with trail-inspired geometry, to ensure confidence on and off road. Also, it is at home on singletrack trails and forest roots. Moreover, the X Trail bike punches well above its weight, using features and designs featured on some of our higher level models such as the Terra Elite. To ensure a smooth ride over tough obstacles, the X Trail bike comes with the latest Suntour XCT fork with a new improved hydraulic lock out, and adjustable preload. Additionally, the extra wide double-butted alloy bars help to keep control through the corners and berms, while powerful Tektro disc brakes help to shed speed fast when needed.
The wheelset is made up of a durable 27.5 disc specific rim, and proven alloy hubs. Grip comes courtesy of CST 2.25” profile tyres with added puncture protection properties. To help you climb, we have equipped the X-Trail with a Shimano Altus 24 speed groupset, which features an 11-32T rear cassette and 24/34/42T chainset for a huge gear range.
| Size | Small (38cm) | Medium (43cm) | Large (48cm) | Extra Large (53cm) |
|---|---|---|---|---|
| Top Tube Length | 556 | 587 | 606 | 630 |
| Seat Tube Length | 390 | 430 | 480 | 530 |
| Head Tube Length | 100 | 100 | 100 | 100 |
| Seat Tube Angle | 73 | 73 | 73 | 73 |
| Head Tube Angle | 70.5 | 70.5 | 70.5 | 70.5 |
| RC Length | 435 | 435 | 435 | 435 |
| BB Drop | 48 | 48 | 48 | 48 |
| Fork Offset | 42 | 42 | 42 | 42 |
| Front Centre | 626 | 645 | 664 | 690 |
| Wheelbase | 1056 | 1076 | 1095 | 1095 |
| Full Fork Length | 497 | 497 | 497 | 497 |
Length measurements are provided in millimeters and degrees, unless specified otherwise.
| Size | Age | Range (cm) | Range (ft & in) |
|---|---|---|---|
| 12" and Balance |
2 - 4 | 80 - 100 | 2'6" - 3'1" |
| 16" | 4 - 7 | 100 - 120 | 3'4" - 4'0" |
| 20" | 7 - 9 | 120 - 135 | 4'0" - 4'5" |
| 24" | 9 - 11 | 135 - 145 | 4'5" - 4'9" |
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
No files available for download.
Description
Our X-Trail is the perfect bike to try out the world of the 27.5″ Tyre. Featuring a 6061 T6 aluminium frame with trail inspired geometry, along with the larger diameter tyre, you’ll be filled with confidence out on the trail.
The Reid X-Trail 27.5 features a 6061 T6 aluminium frame with trail-inspired geometry, to ensure confidence on and off road. Also, it is at home on singletrack trails and forest roots. Moreover, the X Trail bike punches well above its weight, using features and designs featured on some of our higher level models such as the Terra Elite. To ensure a smooth ride over tough obstacles, the X Trail bike comes with the latest Suntour XCT fork with a new improved hydraulic lock out, and adjustable preload. Additionally, the extra wide double-butted alloy bars help to keep control through the corners and berms, while powerful Tektro disc brakes help to shed speed fast when needed.
The wheelset is made up of a durable 27.5 disc specific rim, and proven alloy hubs. Grip comes courtesy of CST 2.25” profile tyres with added puncture protection properties. To help you climb, we have equipped the X-Trail with a Shimano Altus 24 speed groupset, which features an 11-32T rear cassette and 24/34/42T chainset for a huge gear range.
Geometry
| Size | Small (38cm) | Medium (43cm) | Large (48cm) | Extra Large (53cm) |
|---|---|---|---|---|
| Top Tube Length | 556 | 587 | 606 | 630 |
| Seat Tube Length | 390 | 430 | 480 | 530 |
| Head Tube Length | 100 | 100 | 100 | 100 |
| Seat Tube Angle | 73 | 73 | 73 | 73 |
| Head Tube Angle | 70.5 | 70.5 | 70.5 | 70.5 |
| RC Length | 435 | 435 | 435 | 435 |
| BB Drop | 48 | 48 | 48 | 48 |
| Fork Offset | 42 | 42 | 42 | 42 |
| Front Centre | 626 | 645 | 664 | 690 |
| Wheelbase | 1056 | 1076 | 1095 | 1095 |
| Full Fork Length | 497 | 497 | 497 | 497 |
Length measurements are provided in millimeters and degrees, unless specified otherwise.
