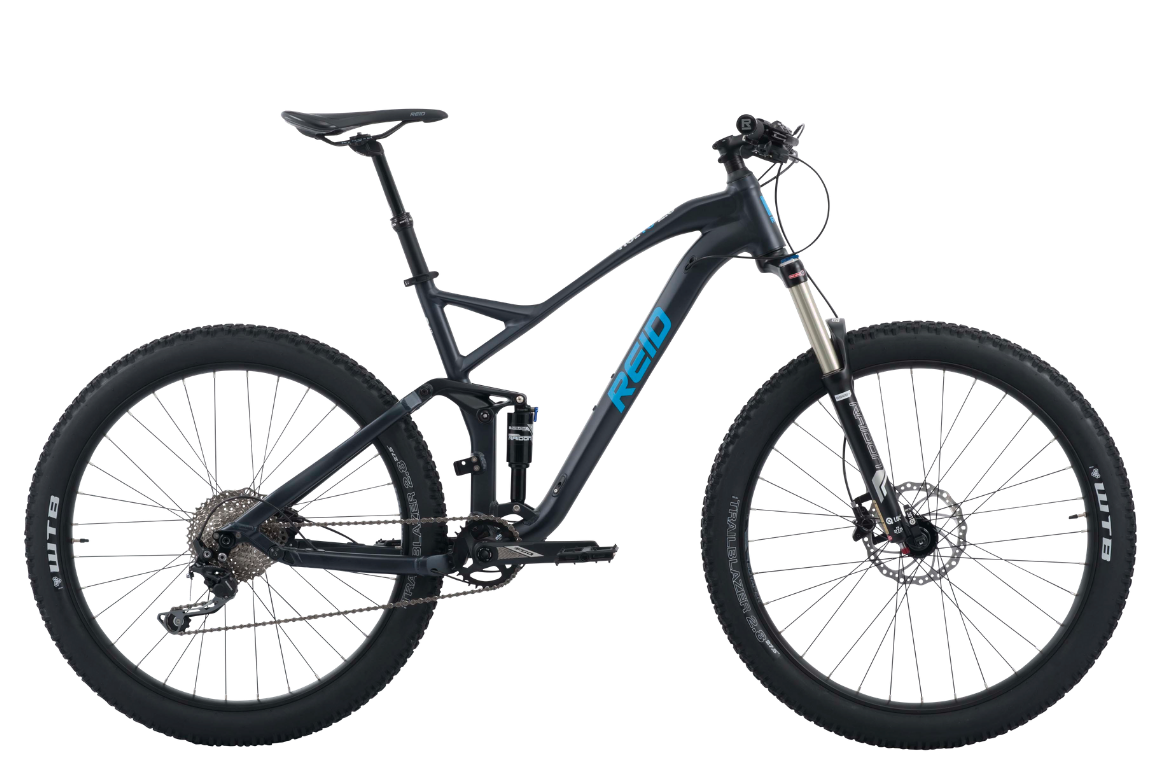

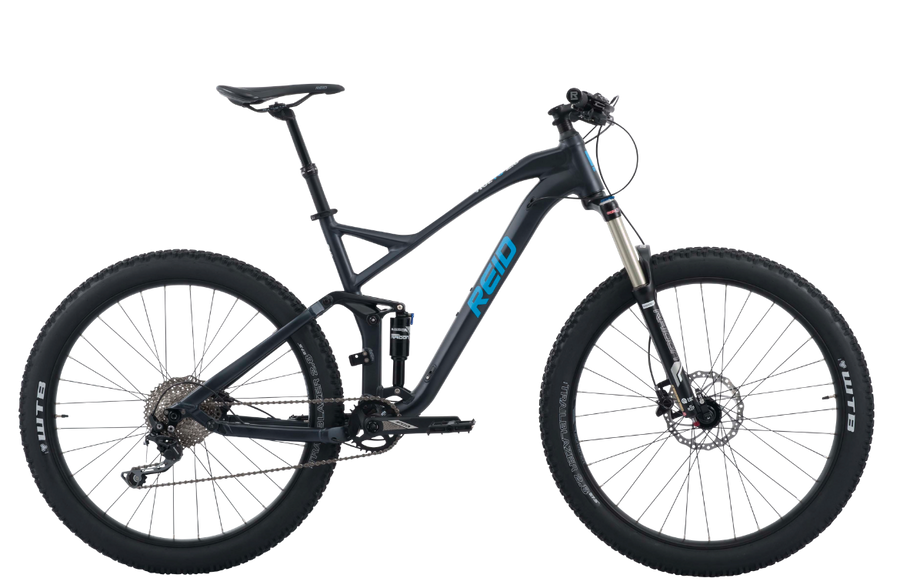

Vice FS 2.0 Mountain Bike Matte Black
FS Shreds
Variant:
Matte Black / S - 38cm
Matte Black / M - 43cm
Matte Black / L - 48cm
Matte Black / XL - 53cm
Price:
Contact your local retailer for RRP
Contact your local retailer for RRP
Contact your local retailer for RRP
Contact your local retailer for RRP
Barcode:
5060632947734
5060632947727
5060632947710
5060632947741
Description
Specifications
Geometry
Size Guide
With full suspension, a 27+ wheelset and carefully selected components, our Vice FS 2.0 is the ultimate ‘go to’ bike for ripping up the trails. Nothing will get in the way of your freedom with the amazing traction and control this premium machine offers.
Plus bikes, or 27+ bikes continue to grow in popularity as the perfect mix between traction on the trails, and rolling resistance, to give riders greater stability and off road capability. The Reid Vice FS 2.0 takes this ethos one step further, adding front and rear suspension from Suntour’s premium Raidon range.

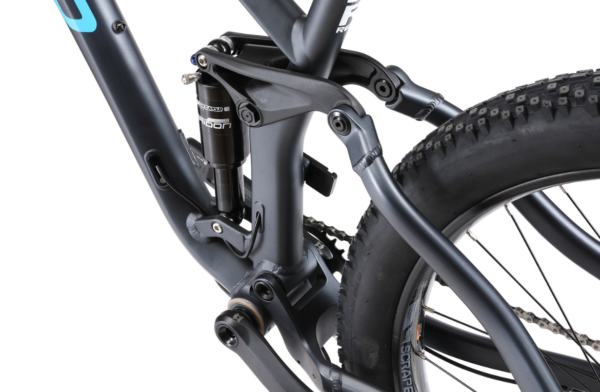

The frame is custom designed by Reid and frame gurus Kinesis. The Reid Vice FS 2.0 utilises the proven 4 bar Horst linkage system and offers 120mm travel for confident descents. Anti-squat kinematics also improve pedalling efficiency and energy transfer when climbing. It further features double and triple butted tubing, 12mm rear through axle, boost spacing and a tapered steerer to name just a few of the latest frame technologies on offer with this model.
Build
| Frame | Reid custom by Kinesis 6061-T6 alloy double and triple butted 27+ with Boost 148 spacing. Rear thru axle, tapered steerer, dropper post cable routing, designed for 120mm travel |
|---|---|
| Fork | Suntour Raidon LO R 650B Plus with tapered steerer and 120mm travel, hydraulic speed lock and rebound damping adjustment |
| Handlebars | Reid oversize alloy riser bar, 760mm |
| Stem | Reid 1 1/8 threadless alloy |
| Pedals | VP 538 sealed bearing nylon platform pedal |
| Saddle | Reid MTB |
| Seatpost | KS Crux 30.9mm dropper post with 125mm travel adjustment and remote |
Groupset
| Cassette | Sunrace MS3 10-speed cassette (11-40T) |
|---|---|
| Bottom Bracket | FSA Mega Exo |
| Chain | KMC X10 |
| Brake Lever | Shimano M365 hydraulic |
| Front Derailleur | n/a – cable guides present |
| Rear Derailleur | Shimano Deore M6000 SGS Shadow Plus |
| Shifters | Shimano Deore RH only |
| Front Brakes | Shimano M365 hydraulic with 180mm front rotor |
| Rear Brakes | 160mm rear rotor |
| Chain Set | FSA Comet MT Boost, Mega Exo, 30T chainring |
Wheels
| Wheelset | WTB Scraper i40 27.5 |
|---|---|
| Tyres | WTB Trail Blazer Comp 27.5 x 2.8″ wire beaded |
| Front Hubs | Formula sealed bearing, 15mm front thru axle, 12mm rear thru axle |
Extras
| Grips | Velo rubber with anodized lock ring |
|---|
We reserve the right to modify product specifications and details without prior notification.
| Size | Small (38cm) | Medium (43cm) | Large (48cm) | Extra Large (53cm) |
|---|---|---|---|---|
| Top Tube Length | 590 | 605 | 615 | 625 |
| Seat Tube Length | 380 | 431 | 480 | 520 |
| Head Tube Length | 110 | 110 | 120 | 130 |
| Seat Tube Angle | 73 | 73 | 73 | 73 |
| Head Tube Angle | 69 | 69 | 69 | 69 |
| RC Length | 437 | 437 | 437 | 437 |
| Fork Offset | 51 | 51 | 51 | 51 |
| Front Centre | 665 | 683 | 700 | 716 |
| Wheelbase | 1096 | 1114 | 1131 | 1148 |
| Full Fork Length | 530 | 530 | 530 | 530 |
Length measurements are provided in millimeters and degrees, unless specified otherwise.
| Size | Range (cm) | Range (ft & in) |
|---|---|---|
| Small | 160 - 167 | 5'3" - 5'6" |
| Medium | 167 - 176 | 5'6" - 5'9" |
| Large | 176 - 185 | 5'9" - 6'1" |
| X Large | 185 - 193 | 6'1" - 6'4" |
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
| Size | Age | Range (cm) | Range (ft & in) |
|---|---|---|---|
| 12" and Balance |
2 - 4 | 80 - 100 | 2'6" - 3'1" |
| 16" | 4 - 7 | 100 - 120 | 3'4" - 4'0" |
| 20" | 7 - 9 | 120 - 135 | 4'0" - 4'5" |
| 24" | 9 - 11 | 135 - 145 | 4'5" - 4'9" |
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
No files available for download.
Description
With full suspension, a 27+ wheelset and carefully selected components, our Vice FS 2.0 is the ultimate ‘go to’ bike for ripping up the trails. Nothing will get in the way of your freedom with the amazing traction and control this premium machine offers.
Plus bikes, or 27+ bikes continue to grow in popularity as the perfect mix between traction on the trails, and rolling resistance, to give riders greater stability and off road capability. The Reid Vice FS 2.0 takes this ethos one step further, adding front and rear suspension from Suntour’s premium Raidon range.
The frame is custom designed by Reid and frame gurus Kinesis. The Reid Vice FS 2.0 utilises the proven 4 bar Horst linkage system and offers 120mm travel for confident descents. Anti-squat kinematics also improve pedalling efficiency and energy transfer when climbing. It further features double and triple butted tubing, 12mm rear through axle, boost spacing and a tapered steerer to name just a few of the latest frame technologies on offer with this model.
Specifications
Build
| Frame | Reid custom by Kinesis 6061-T6 alloy double and triple butted 27+ with Boost 148 spacing. Rear thru axle, tapered steerer, dropper post cable routing, designed for 120mm travel |
|---|---|
| Fork | Suntour Raidon LO R 650B Plus with tapered steerer and 120mm travel, hydraulic speed lock and rebound damping adjustment |
| Handlebars | Reid oversize alloy riser bar, 760mm |
| Stem | Reid 1 1/8 threadless alloy |
| Pedals | VP 538 sealed bearing nylon platform pedal |
| Saddle | Reid MTB |
| Seatpost | KS Crux 30.9mm dropper post with 125mm travel adjustment and remote |
Groupset
| Cassette | Sunrace MS3 10-speed cassette (11-40T) |
|---|---|
| Bottom Bracket | FSA Mega Exo |
| Chain | KMC X10 |
| Brake Lever | Shimano M365 hydraulic |
| Front Derailleur | n/a – cable guides present |
| Rear Derailleur | Shimano Deore M6000 SGS Shadow Plus |
| Shifters | Shimano Deore RH only |
| Front Brakes | Shimano M365 hydraulic with 180mm front rotor |
| Rear Brakes | 160mm rear rotor |
| Chain Set | FSA Comet MT Boost, Mega Exo, 30T chainring |
Wheels
| Wheelset | WTB Scraper i40 27.5 |
|---|---|
| Tyres | WTB Trail Blazer Comp 27.5 x 2.8″ wire beaded |
| Front Hubs | Formula sealed bearing, 15mm front thru axle, 12mm rear thru axle |
Extras
| Grips | Velo rubber with anodized lock ring |
|---|
We reserve the right to modify product specifications and details without prior notification.
Geometry
| Size | Small (38cm) | Medium (43cm) | Large (48cm) | Extra Large (53cm) |
|---|---|---|---|---|
| Top Tube Length | 590 | 605 | 615 | 625 |
| Seat Tube Length | 380 | 431 | 480 | 520 |
| Head Tube Length | 110 | 110 | 120 | 130 |
| Seat Tube Angle | 73 | 73 | 73 | 73 |
| Head Tube Angle | 69 | 69 | 69 | 69 |
| RC Length | 437 | 437 | 437 | 437 |
| Fork Offset | 51 | 51 | 51 | 51 |
| Front Centre | 665 | 683 | 700 | 716 |
| Wheelbase | 1096 | 1114 | 1131 | 1148 |
| Full Fork Length | 530 | 530 | 530 | 530 |
Length measurements are provided in millimeters and degrees, unless specified otherwise.
Size Guide
| Size | Range (cm) | Range (ft & in) |
|---|---|---|
| Small | 160 - 167 | 5'3" - 5'6" |
| Medium | 167 - 176 | 5'6" - 5'9" |
| Large | 176 - 185 | 5'9" - 6'1" |
| X Large | 185 - 193 | 6'1" - 6'4" |
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
