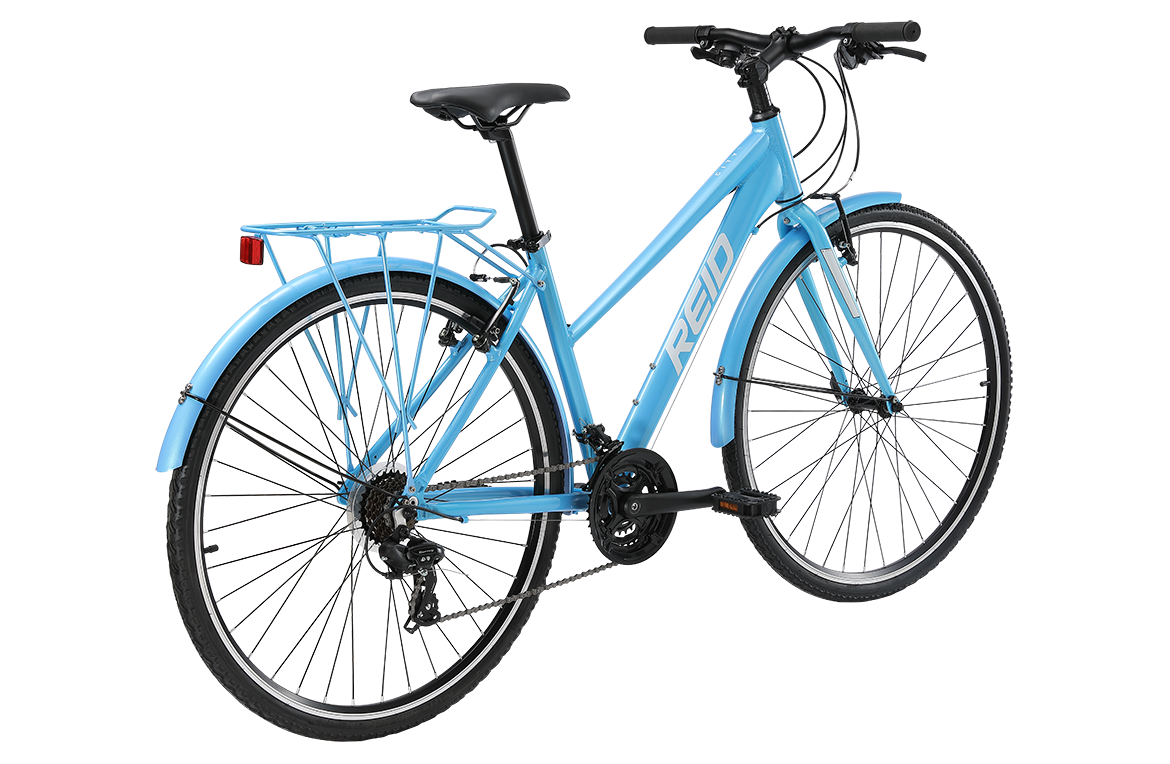

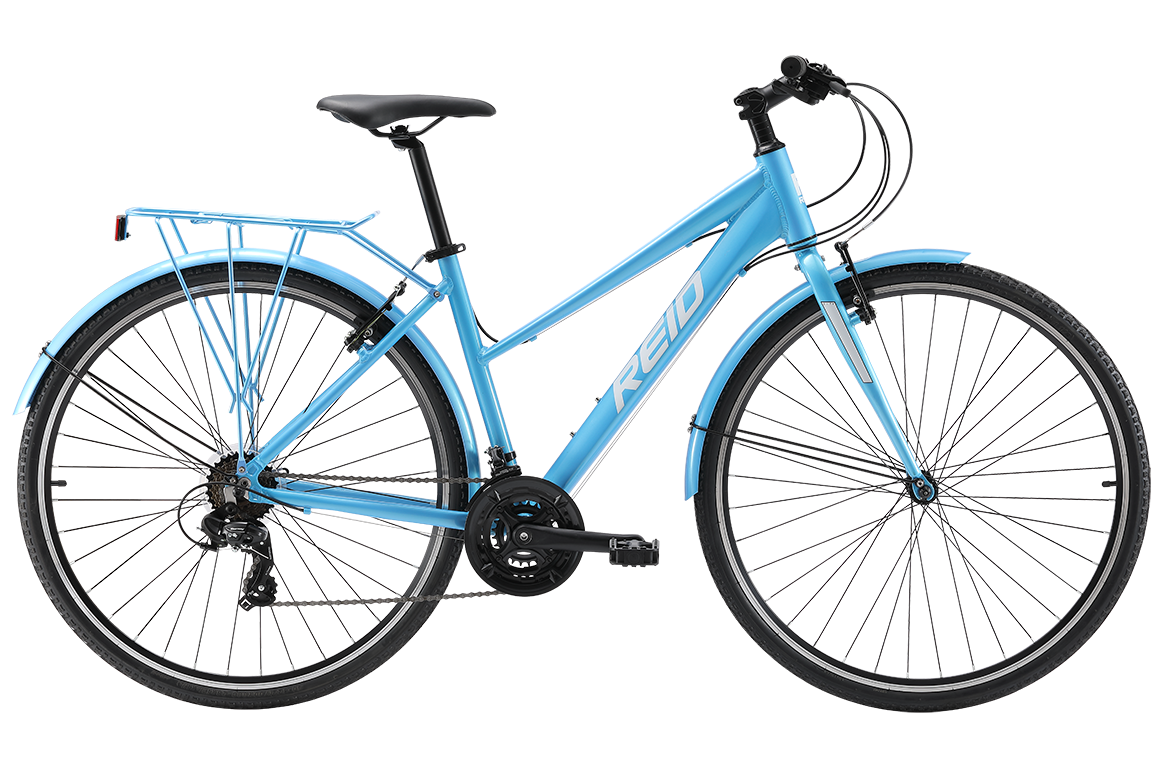

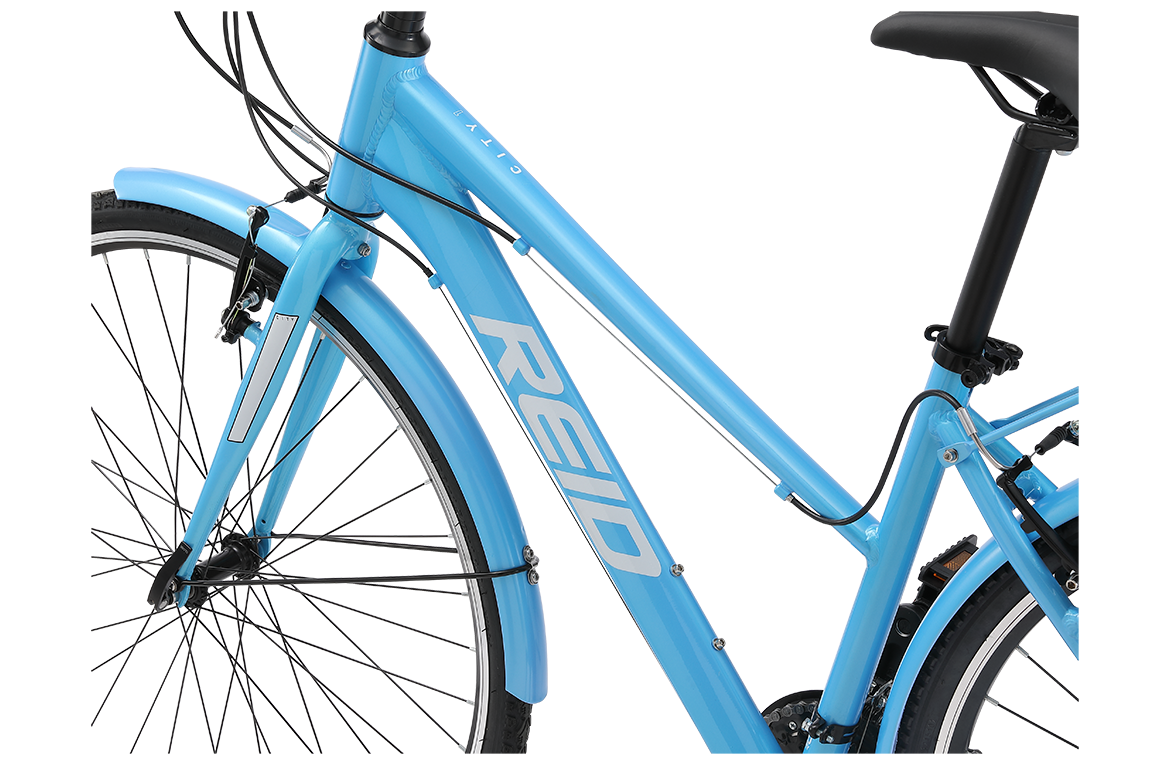

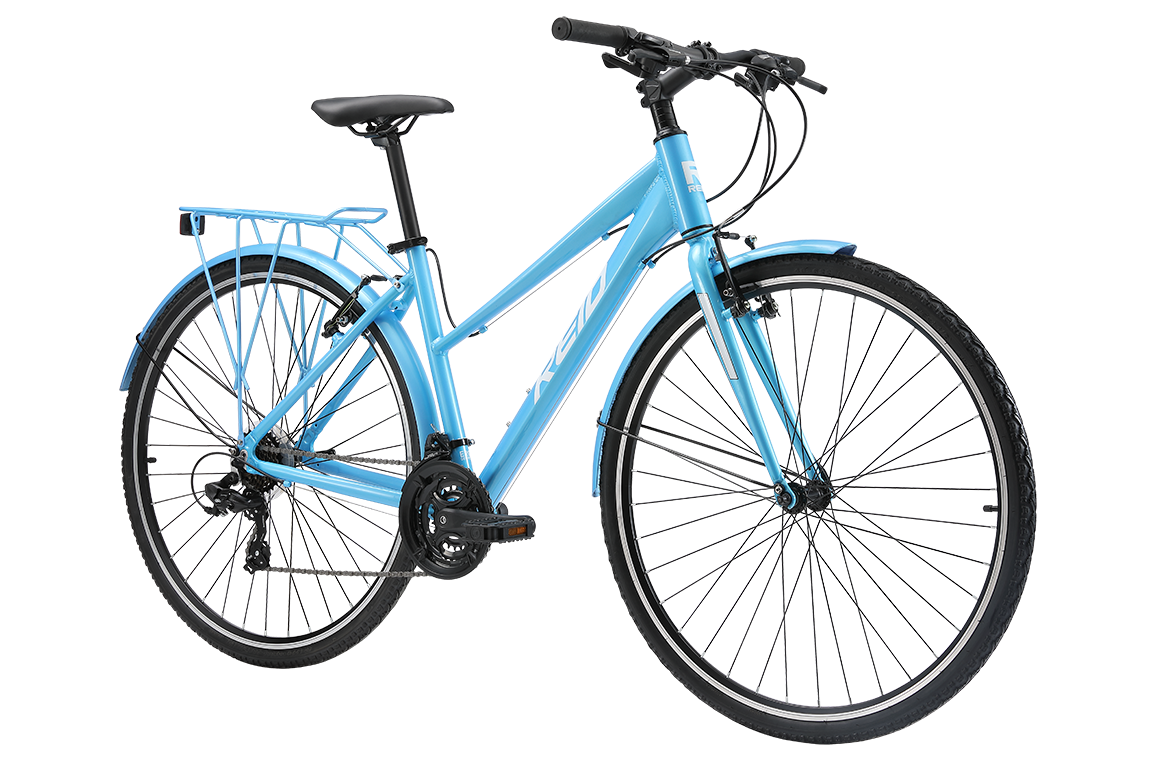

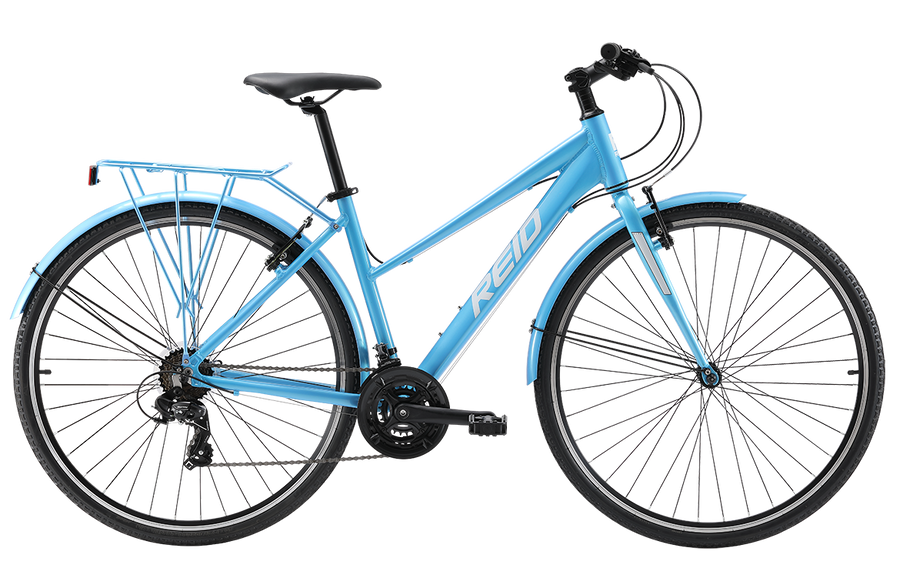

City 1 WSD Commuter Bike Baby Blue
CITY RIDING
Variant:
Baby Blue / S - 39cm
Baby Blue / M - 42cm
Baby Blue / L - 45cm
Price:
Contact your local retailer for RRP
Contact your local retailer for RRP
Contact your local retailer for RRP
Barcode:
5060779750426
5060779750419
5060779750402
Description
Specifications
Geometry
Reid City 1 WSD is a well equipped all-rounder, great for weekday commutes and weekend trails. With a wide range of gears, wide riser handlebars, mudguards and a pannier rack, Reid City 1 WSD is the perfect investment.
The stop-start nature of urban and off-road riding takes a toll on brakes. So, we’ve chosen V-brakes that are tough, reliable and easy to service. V-brakes allow you to quickly replace or adjust the brake-pads.
*Please note that the City 1 WSD comes with a riser bar (not pictured)
Build
| Frame | Alloy commuter frame with integrated headset |
|---|---|
| Fork | Rigid steel |
| Handlebars | Reid alloy comfort riser bar |
| Stem | Reid adjustable alloy quill stem |
| Pedals | Alloy framed, 9/16″ steel axle |
| Saddle | Reid comfort commuter |
| Seatpost | Reid alloy 27.2mm |
Groupset
| Bottom Bracket | Sealed bearing |
|---|---|
| Chain | KMC Z8.3 |
| Brake Lever | Shimano EZ-Fire |
| Freewheel | Shimano 7-speed freewheel (14-28T) |
| Front Derailleur | Shimano Tourney |
| Rear Derailleur | Shimano TX35 |
| Shifters | Shimano EF-41 EZ-Fire |
| Front Brakes | Alloy V-brakes |
| Rear Brakes | Alloy V-brakes |
| Chain Set | Reid alloy triple chainset 28/38/48T |
Wheels
| Wheelset | Reid double wall alloy |
|---|---|
| Tyres | All purpose 700 x 38C hybrid tyres |
| Front Hubs | Alloy bolt type |
Extras
| Grips | Reid rubber |
|---|---|
| Accessories | Mudguards, kickstand and rear rack |
We reserve the right to modify product specifications and details without prior notification.
| Size | Small (39cm) |
|---|---|
| Top Tube Length | 557 |
| Seat Tube Length | 390 |
| Head Tube Length | 160 |
| Seat Tube Angle | 73.5 |
| Head Tube Angle | 71.5 |
| RC Length | 440 |
| BB Drop | 67 |
| Fork Offset | 45 |
| Front Centre | 609.2 |
| Wheelbase | 1049 |
| Full Fork Length | 420 |
Length measurements are provided in millimeters and degrees, unless specified otherwise.
| Size | Age | Range (cm) | Range (ft & in) |
|---|---|---|---|
| 12" and Balance |
2 - 4 | 80 - 100 | 2'6" - 3'1" |
| 16" | 4 - 7 | 100 - 120 | 3'4" - 4'0" |
| 20" | 7 - 9 | 120 - 135 | 4'0" - 4'5" |
| 24" | 9 - 11 | 135 - 145 | 4'5" - 4'9" |
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
No files available for download.
Description
Reid City 1 WSD is a well equipped all-rounder, great for weekday commutes and weekend trails. With a wide range of gears, wide riser handlebars, mudguards and a pannier rack, Reid City 1 WSD is the perfect investment.
The stop-start nature of urban and off-road riding takes a toll on brakes. So, we’ve chosen V-brakes that are tough, reliable and easy to service. V-brakes allow you to quickly replace or adjust the brake-pads.
*Please note that the City 1 WSD comes with a riser bar (not pictured)
Specifications
Build
| Frame | Alloy commuter frame with integrated headset |
|---|---|
| Fork | Rigid steel |
| Handlebars | Reid alloy comfort riser bar |
| Stem | Reid adjustable alloy quill stem |
| Pedals | Alloy framed, 9/16″ steel axle |
| Saddle | Reid comfort commuter |
| Seatpost | Reid alloy 27.2mm |
Groupset
| Bottom Bracket | Sealed bearing |
|---|---|
| Chain | KMC Z8.3 |
| Brake Lever | Shimano EZ-Fire |
| Freewheel | Shimano 7-speed freewheel (14-28T) |
| Front Derailleur | Shimano Tourney |
| Rear Derailleur | Shimano TX35 |
| Shifters | Shimano EF-41 EZ-Fire |
| Front Brakes | Alloy V-brakes |
| Rear Brakes | Alloy V-brakes |
| Chain Set | Reid alloy triple chainset 28/38/48T |
Wheels
| Wheelset | Reid double wall alloy |
|---|---|
| Tyres | All purpose 700 x 38C hybrid tyres |
| Front Hubs | Alloy bolt type |
Extras
| Grips | Reid rubber |
|---|---|
| Accessories | Mudguards, kickstand and rear rack |
We reserve the right to modify product specifications and details without prior notification.
Geometry
| Size | Small (39cm) |
|---|---|
| Top Tube Length | 557 |
| Seat Tube Length | 390 |
| Head Tube Length | 160 |
| Seat Tube Angle | 73.5 |
| Head Tube Angle | 71.5 |
| RC Length | 440 |
| BB Drop | 67 |
| Fork Offset | 45 |
| Front Centre | 609.2 |
| Wheelbase | 1049 |
| Full Fork Length | 420 |
Length measurements are provided in millimeters and degrees, unless specified otherwise.
