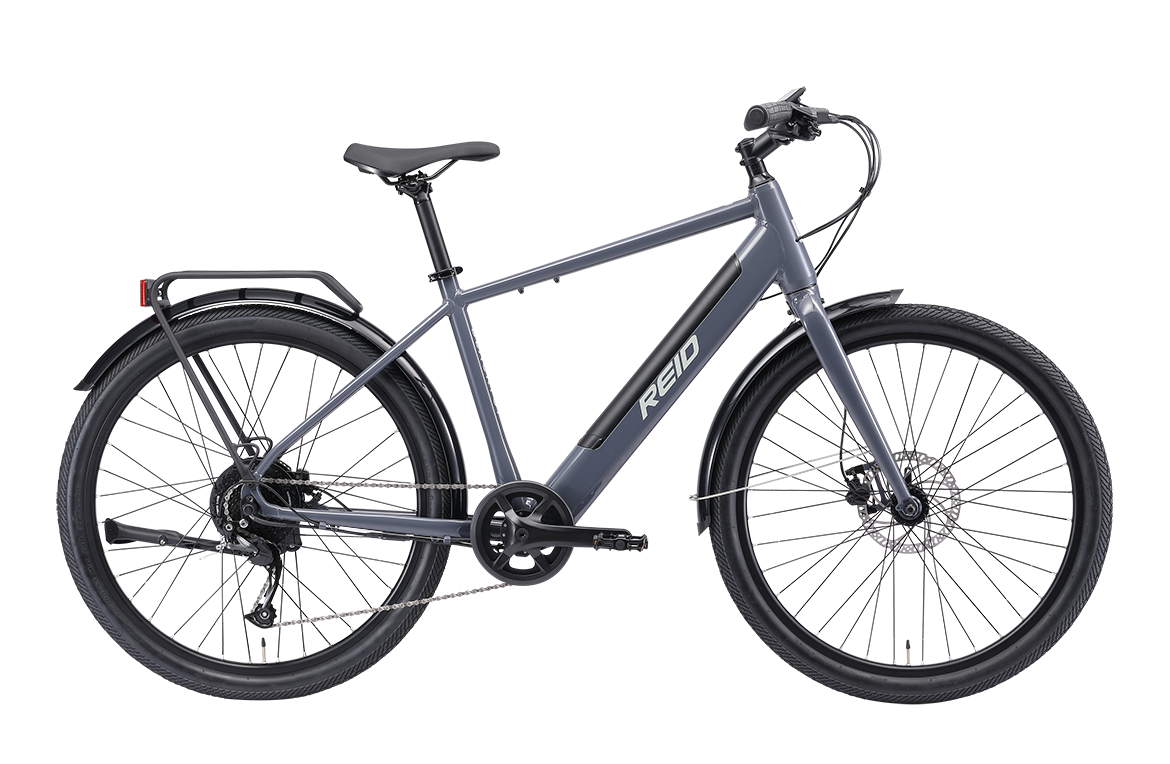

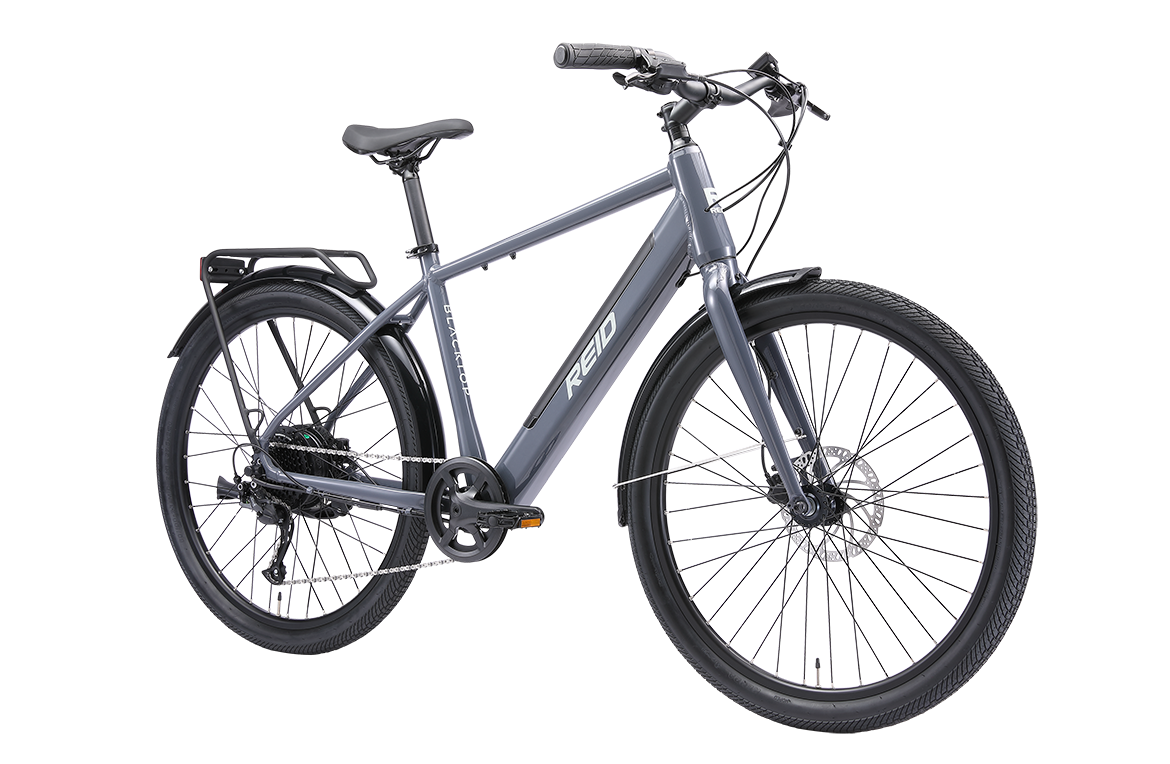

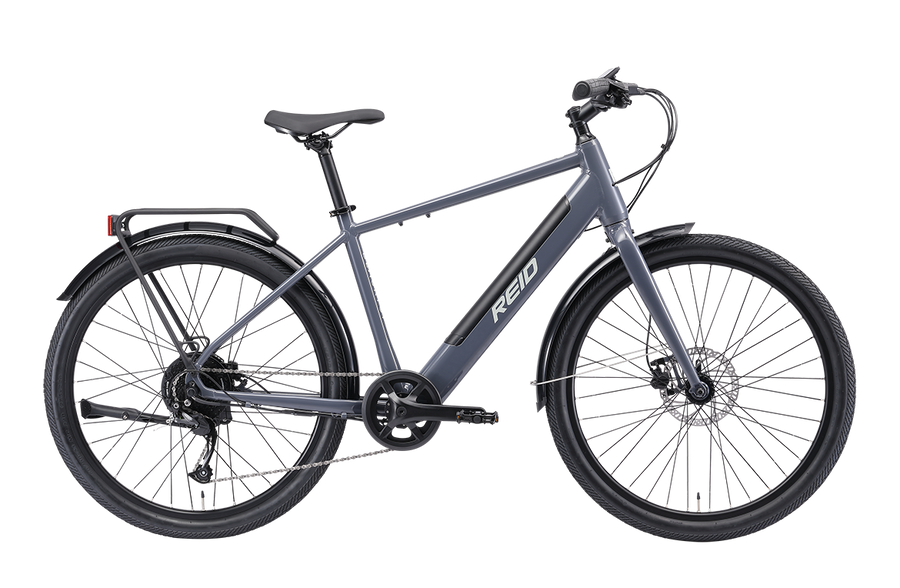

Blacktop 1.0 eBike Grey
POWERFUL COMMUTE
Description
Specifications
Geometry
Size Guide
Assembly
The ultimate urban commuter? We know so.
Want to get to work in effortless style? The Blacktop is for you. The Blacktop 1.0 accommodates your style and transforms your commuting options.
With a Bafang hub motor giving assistance and Shimano 9 speed gearing, you’ll arrive on time and ready to do your thing.
We have packed the Blacktop 1.0 with everything as standard. Mudguards, rack, heavy duty rear stand, ergo grips, and LCD display. You are ready to go as soon as you leave the showroom.
Designed for safety as well as function, the Blacktop 1.0 is fitted with hydraulic disc brakes and wide 2.2” semi slick tyres to keep you on the road and under control in all weathers.
Ditch the car, ditch the pollution, ditch sitting in traffic, ditch the parking problems…… Choose shorter commutes, choose door to door travel, choose fitness, choose a Blacktop.
Build
| Frame | Reid alloy with integrated battery |
|---|---|
| Fork | Reid alloy commuter |
| Handlebars | Reid alloy riser bars 680mm |
| Stem | Reid A head 80mm |
| Pedals | Alloy platform, 9/16″ steel axle |
| Saddle | Selle Royal comfort saddle |
| Seatpost | Reid alloy 30.4mm micro adjust |
Groupset
| Cassette | Shimano 9 Speed Cues |
|---|---|
| Bottom Bracket | Sealed bearing |
| Chain | KMC X9 |
| Brake Lever | Nutt hydro disc |
| Front Derailleur | n/a |
| Rear Derailleur | Shimano Cues |
| Shifters | Shimano 9 Speed Cues |
| Front Brakes | Nutt hydro disc |
| Rear Brakes | Nutt hydro disc |
| Chain Set | Prowheel alloy chainset 40T |
Wheels
| Wheelset | Reid double wall alloy |
|---|---|
| Tyres | Kenda 27.5x2.2" |
| Front Hubs | Reid alloy QR/Bafang hub motor |
Extras
| Grips | Reid ergo rubber |
|---|
Electric
| Motor | Bafang 250W rear hub drive, 45NM torque |
|---|---|

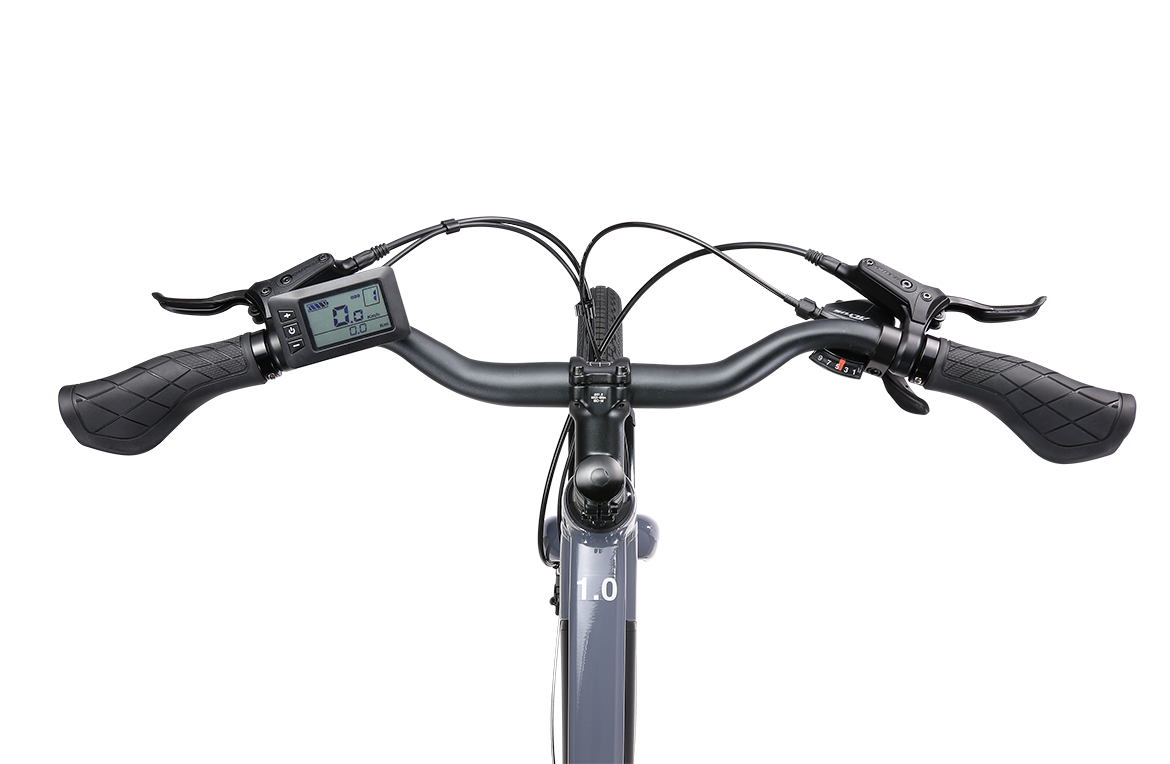

| Display | LCD handlebar-mounted display |
| Battery | 11.6Ah cells, with DIB technology |
We reserve the right to modify product specifications and details without prior notification.
| Size | Small (43cm) | Medium (47cm) | Large (52cm) |
|---|---|---|---|
| Top Tube Length | 573 | 593 | 610 |
| Seat Tube Length | 420 | 470 | 520 |
| Head Tube Length | 180 | 190 | 210 |
| Seat Tube Angle | 73 | 73 | 73 |
| Head Tube Angle | 70 | 70 | 70 |
| RC Length | 470 | 470 | 470 |
| BB Drop | 45 | 45 | 45 |
| Fork Offset | 45 | 45 | 45 |
| Front Centre | 1107 | 1127 | 1145 |
| Wheelbase | 415 | 415 | 415 |
Length measurements are provided in millimeters and degrees, unless specified otherwise.
| Size | Range (cm) | Range (ft & in) |
|---|---|---|
| Small | 160 - 172 | 5'3" - 5'8" |
| Medium | 172 - 182 | 5'8" - 6'0" |
| Large | 182 - 195 | 6'0" - 6'5" |
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
| Size | Age | Range (cm) | Range (ft & in) |
|---|---|---|---|
| 12" and Balance |
2 - 4 | 80 - 100 | 2'6" - 3'1" |
| 16" | 4 - 7 | 100 - 120 | 3'4" - 4'0" |
| 20" | 7 - 9 | 120 - 135 | 4'0" - 4'5" |
| 24" | 9 - 11 | 135 - 145 | 4'5" - 4'9" |
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
Explore our series of how-to video guides designed to walk you through every stage of assembling and fine-tuning your new Blacktop 1.0 eBike Grey. Whether you watch the entire series or focus on specific tasks, we've got you covered. Our dedicated Customer Service team is here to offer expert advice and ensure your bike is ready for the road.
How to: Unbox Your Bike
Learn how to safely unpack and assemble your new bicycle.
How to: Install the Seatpost
Step-by-step guide on fitting and securing the seatpost on your bike frame.
How to: Inflate Tires
Properly inflate your bicycle tires to the recommended pressure for a smooth ride.
How to: Quickly Fit Your Bike
Tips for a basic bike fit to ensure comfort and efficiency.
How to: Install Pedals
Correctly attach pedals to the crank arms of your bike.
How to: Install the Rear Rack
Attach a rear rack for carrying bags and cargo on your bike.
How to: Adjust a Rear Derailleur
Adjust the rear derailleur for smooth gear shifting.
How to: Adjust Disc Brakes
Fine-tune and align disc brakes for optimal braking performance.
Shimano user guide
Tips for Shimano eBike battery and display usage.
Planning to assemble at home? Remember to install the pedals with care. Make sure to align them square and gently tighten to avoid stripping the threads.
