Tract JR 24" Kids Bikes Light Blue
Little Shredder
Variant:
Light Blue / 24"
Price:
Contact your local retailer for RRP
SKU:
1240904924
Barcode:
5060988621920
Description
Specifications
Geometry
Kids Size Guide
Assembly

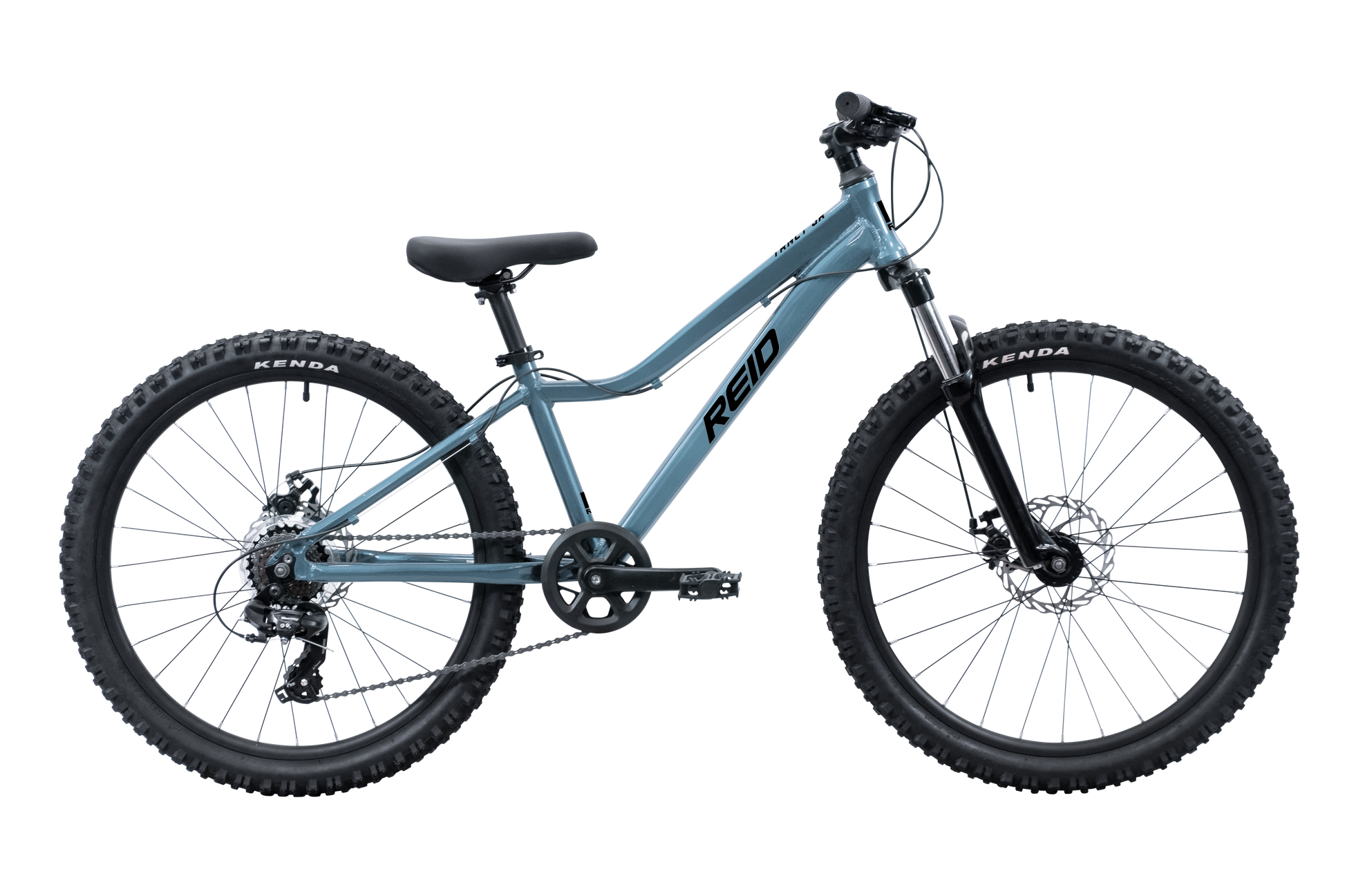

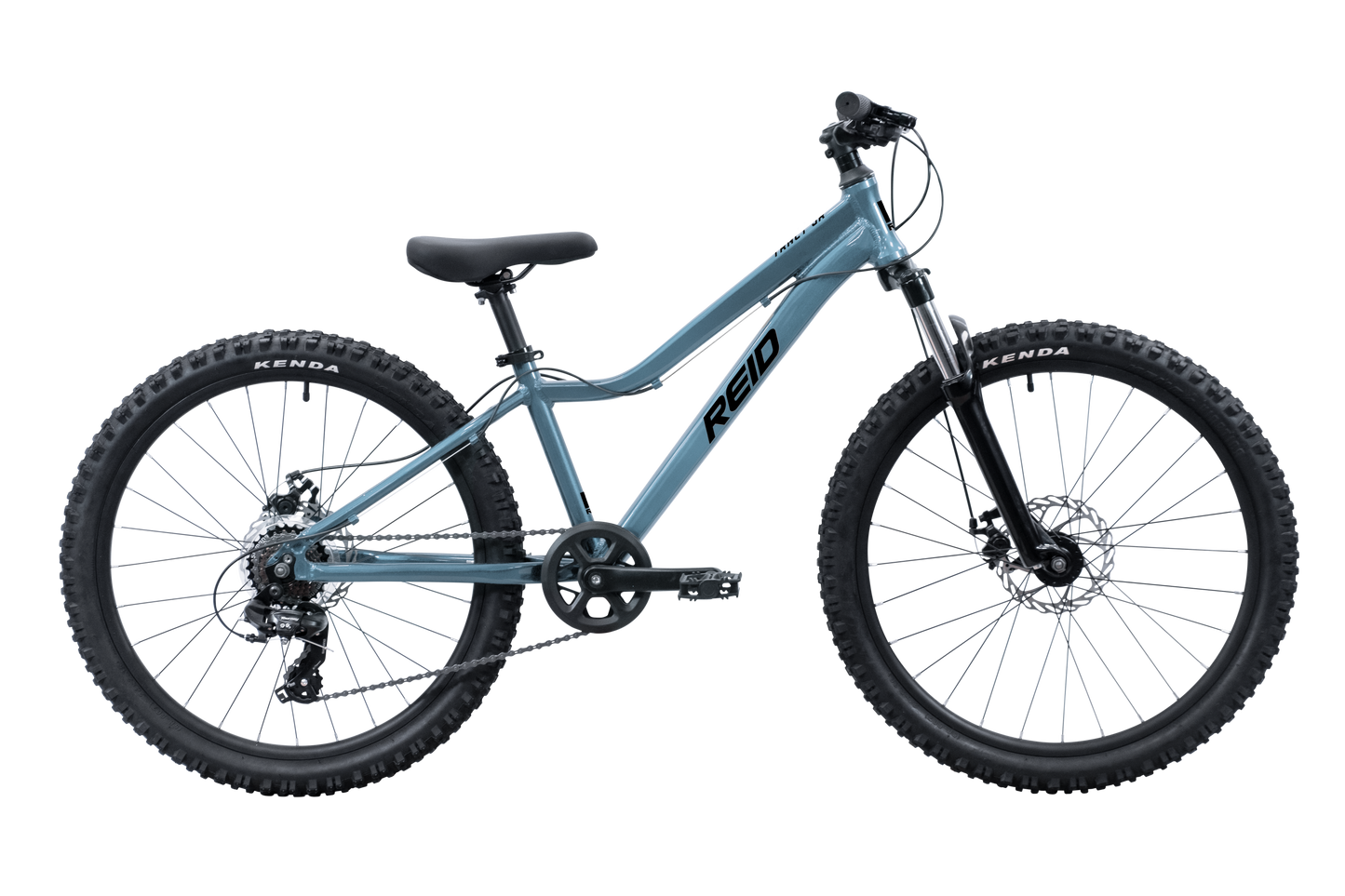

This bike doesn’t just look rad, it backs it up on the trail. For kids who want to rock the neighbourhood or smash the trails.
Built around a tough but lightweight 6061 alloy frame designed for increased step over clearance, the Jr brings all the features of our Tract range to the kids. Front suspension (40mm for 20” wheel and 50mm for 24” wheel) to keep the bumps at bay, double wall alloy rims and 2.35” tyres to keep the wheels in the groove, and powerful cable disc brakes to keep it all under control.
Equipped with Shimano 7 speed tourney gearing and aluminium kids’ specific componentry, the Tract Jr. really is just as good as the adult version.
We believe kids should be given the best opportunity to keep up with their parents and peers. The Jr. is true to that philosophy and the perfect way for kids to explore the outdoors.
Build
| Frame | 6061 aluminium alloy |
|---|---|
| Fork | 24" Suspension 50mm travel |
| Handlebars | Reid alloy riser bar 500mm |
| Stem | Ahead 1 1/8 alloy 40mm |
| Pedals | Reid PVC platform |
| Saddle | Reid Junior |
| Seatpost | Reid alloy 27.2 mm, 250mm micro adjust |
Groupset
| Bottom Bracket | Neco sealed bearing |
|---|---|
| Chain | KMC HP-6L 7 speed |
| Brake Lever | Alloy (Children specific reach) |
| Cassette/Freewheel | Shimano 7-speed freewheel (14-28t) |
| Rear Derailleur | Shimano Tourney TY21 |
| Shifters | LTWOO A2 7 speed trigger |
| Brakes | Jak 5 mechanical disc brake |
| Chainset | Alloy crankset single chainring 152mm 32T |
Wheels
| Wheelset | Reid double wall alloy 24H |
|---|---|
| Tyres | Kenda 24 x 2.35" |
| Front Hubs | Reid alloy bolt on 28H |
Extras
| Grips | Reid Junior rubber |
|---|
We reserve the right to modify product specifications and details without prior notification.
| Size | 24 (24) |
|---|---|
| Top Tube Length | 520 |
| Seat Tube Length | 310 |
| Head Tube Length | 110 |
| Seat Tube Angle | 72 |
| Head Tube Angle | 68 |
| RC Length | 410 |
| BB Drop | 26.5 |
| Fork Offset | 37 |
| Front Centre | 590 |
| Wheelbase | 999 |
| Full Fork Length | 410 |
Length measurements are provided in millimeters and degrees, unless specified otherwise.
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
| Size | Age | Range (cm) | Range (ft & in) |
|---|---|---|---|
| 12" and Balance |
2 - 4 | 80 - 100 | 2'6" - 3'1" |
| 16" | 4 - 7 | 100 - 120 | 3'4" - 4'0" |
| 20" | 7 - 9 | 120 - 135 | 4'0" - 4'5" |
| 24" | 9 - 11 | 135 - 145 | 4'5" - 4'9" |
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
Explore our series of how-to video guides designed to walk you through every stage of assembling and fine-tuning your new Tract JR 24" Kids Bikes Light Blue. Whether you watch the entire series or focus on specific tasks, we've got you covered. Our dedicated Customer Service team is here to offer expert advice and ensure your bike is ready for the road.
How to: Unbox Your Bike
Learn how to safely unpack and assemble your new bicycle.
How to: Install the Seatpost
Step-by-step guide on fitting and securing the seatpost on your bike frame.
How to: Inflate Tires
Properly inflate your bicycle tires to the recommended pressure for a smooth ride.
How to: Install a Front Wheel Nut and Axle
Mount the front wheel with proper alignment and secure it in place.
How to: Install Pedals
Correctly attach pedals to the crank arms of your bike.
How to: Adjust a Rear Derailleur
Adjust the rear derailleur for smooth gear shifting.
How to: Quickly Fit Your Bike
Tips for a basic bike fit to ensure comfort and efficiency.
How to: Adjust Disc Brakes
Fine-tune and align disc brakes for optimal braking performance.
Planning to assemble at home? Remember to install the pedals with care. Make sure to align them square and gently tighten to avoid stripping the threads.
No files available for download.
Description
This bike doesn’t just look rad, it backs it up on the trail. For kids who want to rock the neighbourhood or smash the trails.
Built around a tough but lightweight 6061 alloy frame designed for increased step over clearance, the Jr brings all the features of our Tract range to the kids. Front suspension (40mm for 20” wheel and 50mm for 24” wheel) to keep the bumps at bay, double wall alloy rims and 2.35” tyres to keep the wheels in the groove, and powerful cable disc brakes to keep it all under control.
Equipped with Shimano 7 speed tourney gearing and aluminium kids’ specific componentry, the Tract Jr. really is just as good as the adult version.
We believe kids should be given the best opportunity to keep up with their parents and peers. The Jr. is true to that philosophy and the perfect way for kids to explore the outdoors.
Specifications
Build
| Frame | 6061 aluminium alloy |
|---|---|
| Fork | 24" Suspension 50mm travel |
| Handlebars | Reid alloy riser bar 500mm |
| Stem | Ahead 1 1/8 alloy 40mm |
| Pedals | Reid PVC platform |
| Saddle | Reid Junior |
| Seatpost | Reid alloy 27.2 mm, 250mm micro adjust |
Groupset
| Bottom Bracket | Neco sealed bearing |
|---|---|
| Chain | KMC HP-6L 7 speed |
| Brake Lever | Alloy (Children specific reach) |
| Cassette/Freewheel | Shimano 7-speed freewheel (14-28t) |
| Rear Derailleur | Shimano Tourney TY21 |
| Shifters | LTWOO A2 7 speed trigger |
| Brakes | Jak 5 mechanical disc brake |
| Chainset | Alloy crankset single chainring 152mm 32T |
Wheels
| Wheelset | Reid double wall alloy 24H |
|---|---|
| Tyres | Kenda 24 x 2.35" |
| Front Hubs | Reid alloy bolt on 28H |
Extras
| Grips | Reid Junior rubber |
|---|
We reserve the right to modify product specifications and details without prior notification.
Geometry
| Size | 24 (24) |
|---|---|
| Top Tube Length | 520 |
| Seat Tube Length | 310 |
| Head Tube Length | 110 |
| Seat Tube Angle | 72 |
| Head Tube Angle | 68 |
| RC Length | 410 |
| BB Drop | 26.5 |
| Fork Offset | 37 |
| Front Centre | 590 |
| Wheelbase | 999 |
| Full Fork Length | 410 |
Length measurements are provided in millimeters and degrees, unless specified otherwise.
Kids Size Guide
| Size | Age | Range (cm) | Range (ft & in) |
|---|---|---|---|
| 12" and Balance |
2 - 4 | 80 - 100 | 2'6" - 3'1" |
| 16" | 4 - 7 | 100 - 120 | 3'4" - 4'0" |
| 20" | 7 - 9 | 120 - 135 | 4'0" - 4'5" |
| 24" | 9 - 11 | 135 - 145 | 4'5" - 4'9" |
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
Assembly
Explore our series of how-to video guides designed to walk you through every stage of assembling and fine-tuning your new Tract JR 24" Kids Bikes Light Blue. Whether you watch the entire series or focus on specific tasks, we've got you covered. Our dedicated Customer Service team is here to offer expert advice and ensure your bike is ready for the road.
How to: Unbox Your Bike
Learn how to safely unpack and assemble your new bicycle.
How to: Install the Seatpost
Step-by-step guide on fitting and securing the seatpost on your bike frame.
How to: Inflate Tires
Properly inflate your bicycle tires to the recommended pressure for a smooth ride.
How to: Install a Front Wheel Nut and Axle
Mount the front wheel with proper alignment and secure it in place.
How to: Install Pedals
Correctly attach pedals to the crank arms of your bike.
How to: Adjust a Rear Derailleur
Adjust the rear derailleur for smooth gear shifting.
How to: Quickly Fit Your Bike
Tips for a basic bike fit to ensure comfort and efficiency.
How to: Adjust Disc Brakes
Fine-tune and align disc brakes for optimal braking performance.
Planning to assemble at home? Remember to install the pedals with care. Make sure to align them square and gently tighten to avoid stripping the threads.
