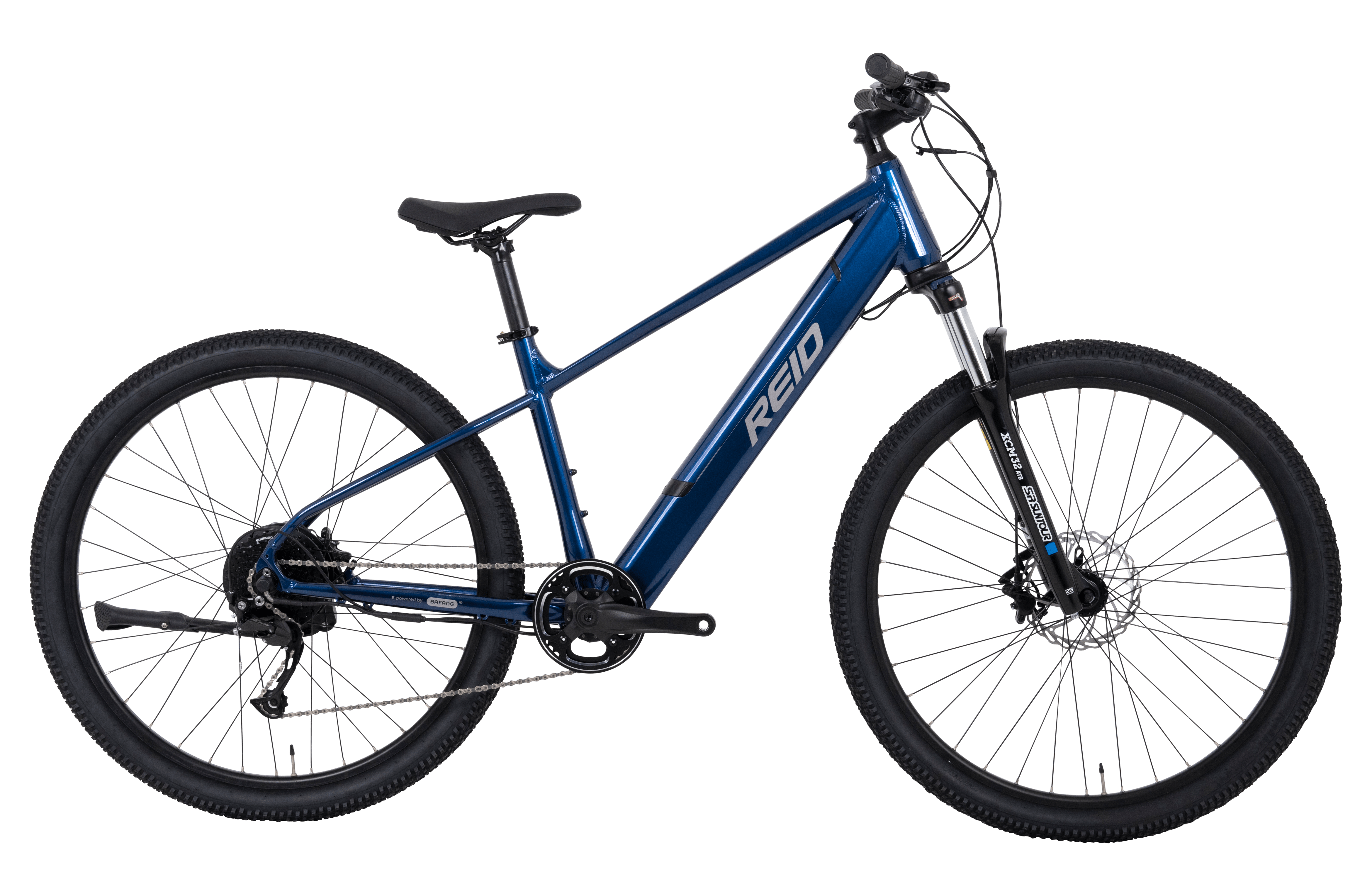

eTrail 1 USA eBike Navy Blue
POWERFUL MTB
Description
Specifications
Geometry
Size Guide
Assembly
Our eTrail 1 packs a whole load of features at an unmatchable price point. Big names and big capability come as standard.
The eTrail 1 frame features integrated headset, cables, and 11.6Ah battery for discreet looks and virtually hidden E-Bike capability. Suspension comes from SR Suntour and offers 100mm of bump absorbing travel to smooth out the trails.
Drivetrain is Acera 9 speed matched to a powerful Bafang 250W rear hub drive motor for seamless shifting and pedal assistance. Slowing you down are Nutt hydro disc brakes, a quality brake thoroughly put to the test by us here at Reid, giving great modulation to back up their power. What is power without control though? 2.35” tyres, double wall rims, 740mm wide riser handlebars, and a Selle Royal saddle will keep you in charge at all times. An awesome ebike and an incredible price!
Please make sure to familiarise yourself with eBike and eScooter safety information before charging or using your new Reid. You can view and download user manuals and safety instructions here.
Build
| Frame | Reid alloy MTB with integrated battery |
|---|---|
| Fork | SR Suntour XCM30 100mm |
| Handlebars | Reid alloy riser bars 740mm 20mm rise |
| Stem | Reid A head 31.8mm 70mm |
| Pedals | Feimine alloy platform |
| Saddle | Selle Royal 2096HRN |
| Seatpost | Reid alloy 30.9mm micro adjust |
Groupset
| Cassette | Shimano HG200 12-32T 8 speed |
|---|---|
| Bottom Bracket | Sealed bearing |
| Chain | KMC Z8.1 |
| Brake Lever | Tektro M275 hydo disc brakes |
| Front Derailleur | n/a |
| Rear Derailleur | Shimano TX800 8speed |
| Shifters | LTWOO Triger 8 speed |
| Front Brakes | Tektro M275 hydo disc brakes |
| Chain Set | 38T Alloy 170mm |
Wheels
| Wheelset | Reid double wall alloy 36H |
|---|---|
| Tyres | Wanda 29x2.25 |
| Front Hubs | Reid alloy QR 6 bolt 36H |
Extras
| Grips | Reid lock on MTB |
|---|---|
| Accessories | Alloy dropout mounted kickstand |
Electric
| Motor | Jiabo 48V 500W (760W peak power) hub motor |
|---|---|
| Display | Key Display KD58c |
| Battery | Integrated 48V 13.4ah 643wh |
| Throttle | Yes |
We reserve the right to modify product specifications and details without prior notification.
| Size | Small (43cm) | Medium (48cm) | Large (53cm) | S (43cm) | M (48cm) | L (53cm) |
|---|---|---|---|---|---|---|
| Top Tube Length | 606 | 615 | 625 | 584 | 603 | 622 |
| Seat Tube Length | 430 | 480 | 530 | 430 | 580 | 530 |
| Head Tube Length | 125 | 145 | 165 | 180 | 180 | 180 |
| Seat Tube Angle | 76 | 76 | 76 | 73 | 73 | 73 |
| Head Tube Angle | 67 | 67 | 67 | 69 | 69 | 69 |
| RC Length | 475 | 475 | 475 | 445 | 445 | 445 |
| BB Drop | 55 | 55 | 55 | 45 | 45 | 45 |
| Fork Offset | 51 | 51 | 51 | 44 | 44 | 44 |
| Front Centre | 1226 | 1239 | 1252 | 665 | 685 | 704 |
| Wheelbase | 557 | 557 | 552 | 1120 | 1140 | 1159 |
Length measurements are provided in millimeters and degrees, unless specified otherwise.
| Size | Range (cm) | Range (ft & in) |
|---|---|---|
| Small | 160 - 172 | 5'3" - 5'8" |
| Medium | 172 - 182 | 5'8" - 6'0" |
| Large | 182 - 195 | 6'0" - 6'5" |
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
| Size | Age | Range (cm) | Range (ft & in) |
|---|---|---|---|
| 12" and Balance |
2 - 4 | 80 - 100 | 2'6" - 3'1" |
| 16" | 4 - 7 | 100 - 120 | 3'4" - 4'0" |
| 20" | 7 - 9 | 120 - 135 | 4'0" - 4'5" |
| 24" | 9 - 11 | 135 - 145 | 4'5" - 4'9" |
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
Explore our series of how-to video guides designed to walk you through every stage of assembling and fine-tuning your new eTrail 1 USA eBike Navy Blue. Whether you watch the entire series or focus on specific tasks, we've got you covered. Our dedicated Customer Service team is here to offer expert advice and ensure your bike is ready for the road.
How to: Unbox Your Bike
Learn how to safely unpack and assemble your new bicycle.
How to: Install the Seatpost
Step-by-step guide on fitting and securing the seatpost on your bike frame.
How to: Inflate Tires
Properly inflate your bicycle tires to the recommended pressure for a smooth ride.
How to: Install Pedals
Correctly attach pedals to the crank arms of your bike.
How to: Install the Rear Rack
Attach a rear rack for carrying bags and cargo on your bike.
How to: Adjust a Rear Derailleur
Adjust the rear derailleur for smooth gear shifting.
How to: Install A-Head Handlebars
Mount A-Head handlebars and align them properly.
How to: Quickly Fit Your Bike
Tips for a basic bike fit to ensure comfort and efficiency.
How to: Adjust Disc Brakes
Fine-tune and align disc brakes for optimal braking performance.
Shimano user guide
Tips for Shimano eBike battery and display usage.
Planning to assemble at home? Remember to install the pedals with care. Make sure to align them square and gently tighten to avoid stripping the threads.
No files available for download.
Description
Our eTrail 1 packs a whole load of features at an unmatchable price point. Big names and big capability come as standard.
The eTrail 1 frame features integrated headset, cables, and 11.6Ah battery for discreet looks and virtually hidden E-Bike capability. Suspension comes from SR Suntour and offers 100mm of bump absorbing travel to smooth out the trails.
Drivetrain is Acera 9 speed matched to a powerful Bafang 250W rear hub drive motor for seamless shifting and pedal assistance. Slowing you down are Nutt hydro disc brakes, a quality brake thoroughly put to the test by us here at Reid, giving great modulation to back up their power. What is power without control though? 2.35” tyres, double wall rims, 740mm wide riser handlebars, and a Selle Royal saddle will keep you in charge at all times. An awesome ebike and an incredible price!
Please make sure to familiarise yourself with eBike and eScooter safety information before charging or using your new Reid. You can view and download user manuals and safety instructions here.
Specifications
Build
| Frame | Reid alloy MTB with integrated battery |
|---|---|
| Fork | SR Suntour XCM30 100mm |
| Handlebars | Reid alloy riser bars 740mm 20mm rise |
| Stem | Reid A head 31.8mm 70mm |
| Pedals | Feimine alloy platform |
| Saddle | Selle Royal 2096HRN |
| Seatpost | Reid alloy 30.9mm micro adjust |
Groupset
| Cassette | Shimano HG200 12-32T 8 speed |
|---|---|
| Bottom Bracket | Sealed bearing |
| Chain | KMC Z8.1 |
| Brake Lever | Tektro M275 hydo disc brakes |
| Front Derailleur | n/a |
| Rear Derailleur | Shimano TX800 8speed |
| Shifters | LTWOO Triger 8 speed |
| Front Brakes | Tektro M275 hydo disc brakes |
| Chain Set | 38T Alloy 170mm |
Wheels
| Wheelset | Reid double wall alloy 36H |
|---|---|
| Tyres | Wanda 29x2.25 |
| Front Hubs | Reid alloy QR 6 bolt 36H |
Extras
| Grips | Reid lock on MTB |
|---|---|
| Accessories | Alloy dropout mounted kickstand |
Electric
| Motor | Jiabo 48V 500W (760W peak power) hub motor |
|---|---|
| Display | Key Display KD58c |
| Battery | Integrated 48V 13.4ah 643wh |
| Throttle | Yes |
We reserve the right to modify product specifications and details without prior notification.
Geometry
| Size | Small (43cm) | Medium (48cm) | Large (53cm) | S (43cm) | M (48cm) | L (53cm) |
|---|---|---|---|---|---|---|
| Top Tube Length | 606 | 615 | 625 | 584 | 603 | 622 |
| Seat Tube Length | 430 | 480 | 530 | 430 | 580 | 530 |
| Head Tube Length | 125 | 145 | 165 | 180 | 180 | 180 |
| Seat Tube Angle | 76 | 76 | 76 | 73 | 73 | 73 |
| Head Tube Angle | 67 | 67 | 67 | 69 | 69 | 69 |
| RC Length | 475 | 475 | 475 | 445 | 445 | 445 |
| BB Drop | 55 | 55 | 55 | 45 | 45 | 45 |
| Fork Offset | 51 | 51 | 51 | 44 | 44 | 44 |
| Front Centre | 1226 | 1239 | 1252 | 665 | 685 | 704 |
| Wheelbase | 557 | 557 | 552 | 1120 | 1140 | 1159 |
Length measurements are provided in millimeters and degrees, unless specified otherwise.
Size Guide
| Size | Range (cm) | Range (ft & in) |
|---|---|---|
| Small | 160 - 172 | 5'3" - 5'8" |
| Medium | 172 - 182 | 5'8" - 6'0" |
| Large | 182 - 195 | 6'0" - 6'5" |
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
Assembly
Explore our series of how-to video guides designed to walk you through every stage of assembling and fine-tuning your new eTrail 1 USA eBike Navy Blue. Whether you watch the entire series or focus on specific tasks, we've got you covered. Our dedicated Customer Service team is here to offer expert advice and ensure your bike is ready for the road.
How to: Unbox Your Bike
Learn how to safely unpack and assemble your new bicycle.
How to: Install the Seatpost
Step-by-step guide on fitting and securing the seatpost on your bike frame.
How to: Inflate Tires
Properly inflate your bicycle tires to the recommended pressure for a smooth ride.
How to: Install Pedals
Correctly attach pedals to the crank arms of your bike.
How to: Install the Rear Rack
Attach a rear rack for carrying bags and cargo on your bike.
How to: Adjust a Rear Derailleur
Adjust the rear derailleur for smooth gear shifting.
How to: Install A-Head Handlebars
Mount A-Head handlebars and align them properly.
How to: Quickly Fit Your Bike
Tips for a basic bike fit to ensure comfort and efficiency.
How to: Adjust Disc Brakes
Fine-tune and align disc brakes for optimal braking performance.
Shimano user guide
Tips for Shimano eBike battery and display usage.
Planning to assemble at home? Remember to install the pedals with care. Make sure to align them square and gently tighten to avoid stripping the threads.
